采用進口感壓芯片;選進的貼片工藝,具有零點、滿量程補償、溫度補償;24位ADC采樣處理芯片;DSP數字信號調理算法;多點性線溫度校準;電壓電流過載保護;標準工業信號輸出:4-20mA(二線制)+4位LED顯示表頭;適用于測量介質溫度:-20~150、250、350、500℃;結構小巧、全封焊結構、抗沖擊、耐疲勞、可靠性高、多種過程連接方式。

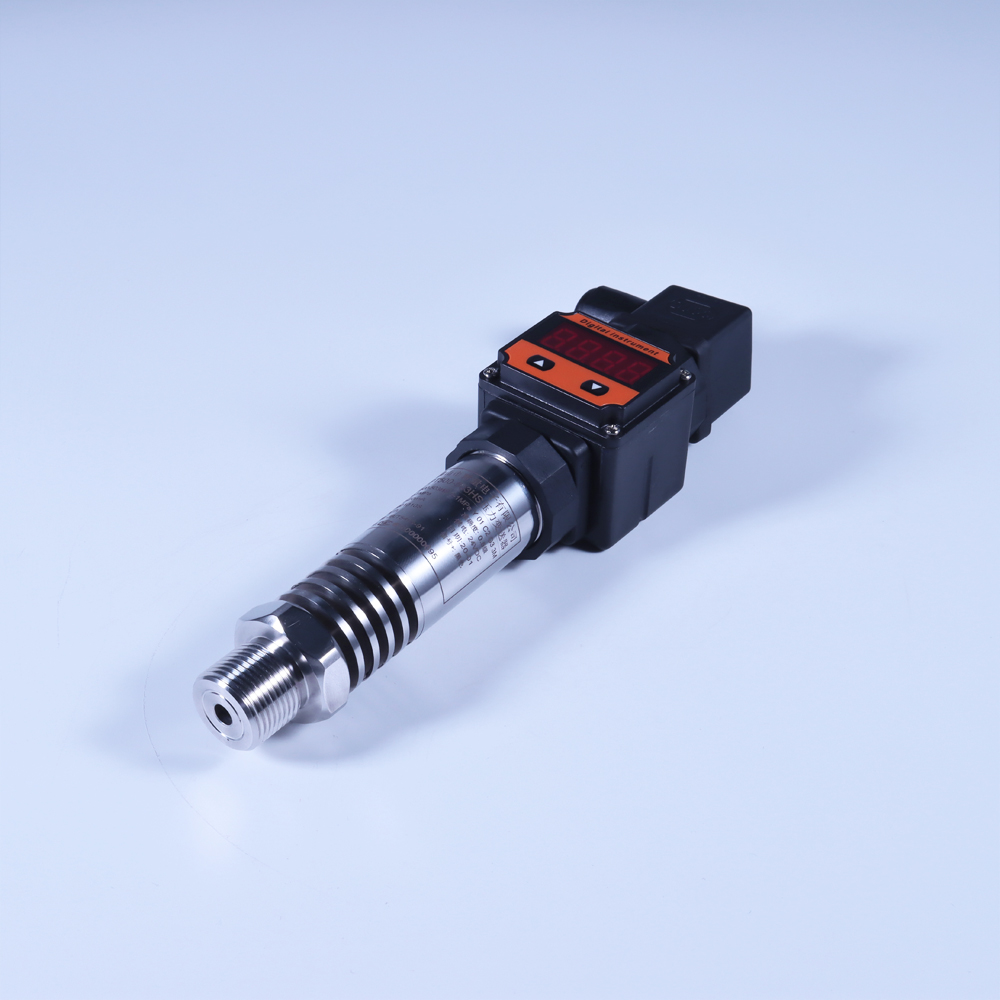

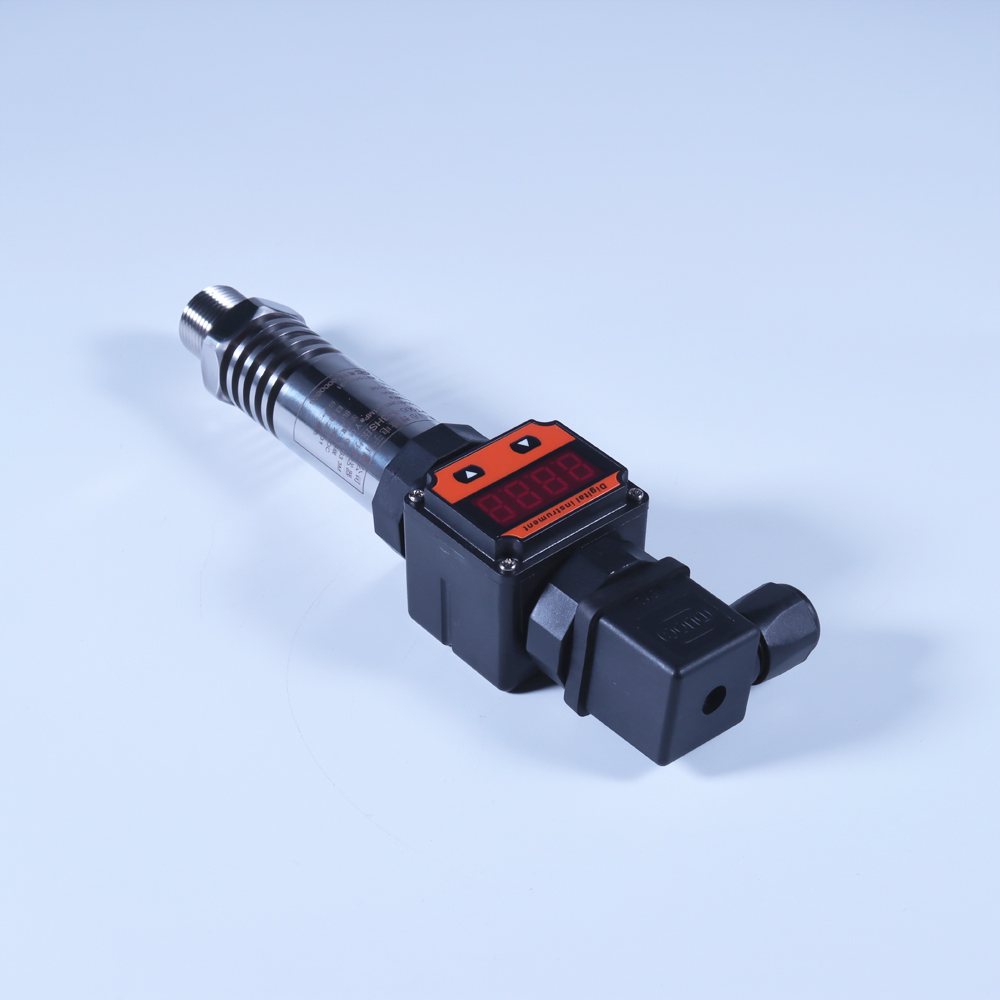

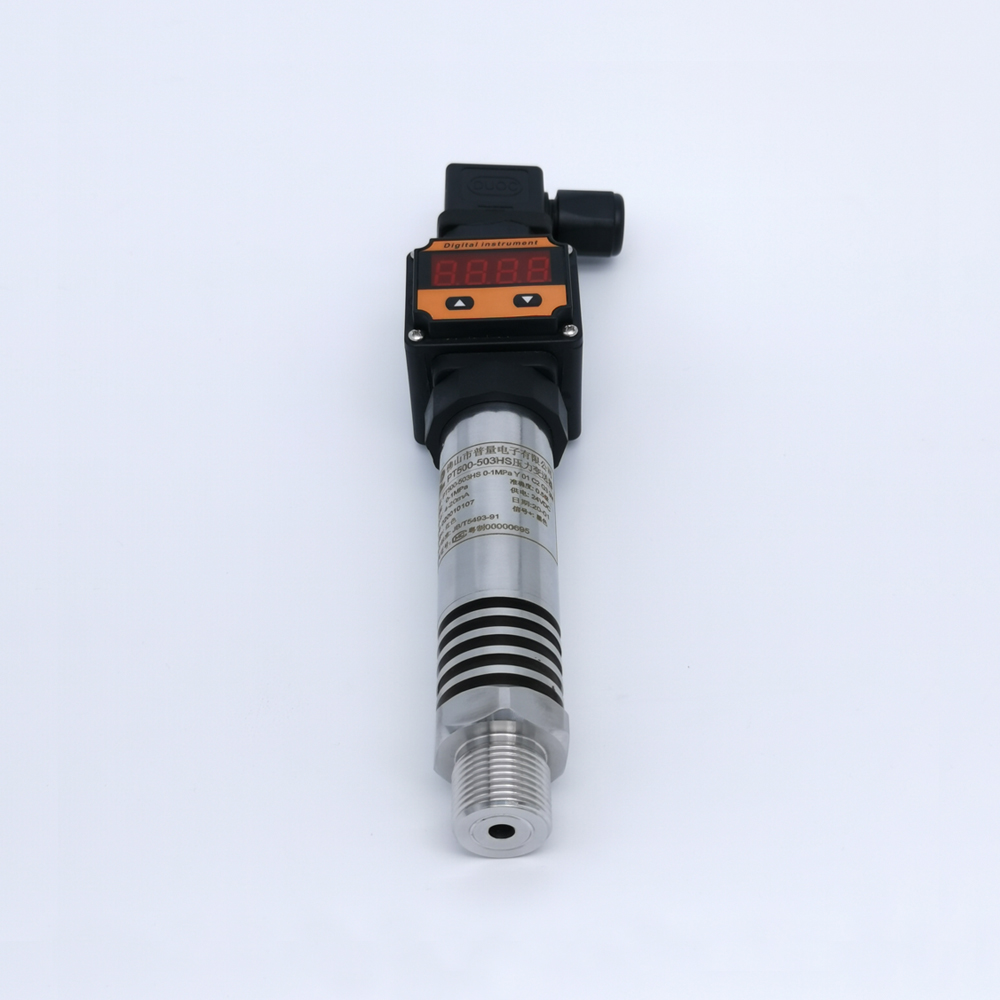

高溫?cái)?shù)顯壓力變送器
高溫?cái)?shù)顯壓力傳感器
高溫水壓傳感器
高溫油壓傳感器
高溫蒸氣壓力傳感器
高溫蒸氣壓力變送器

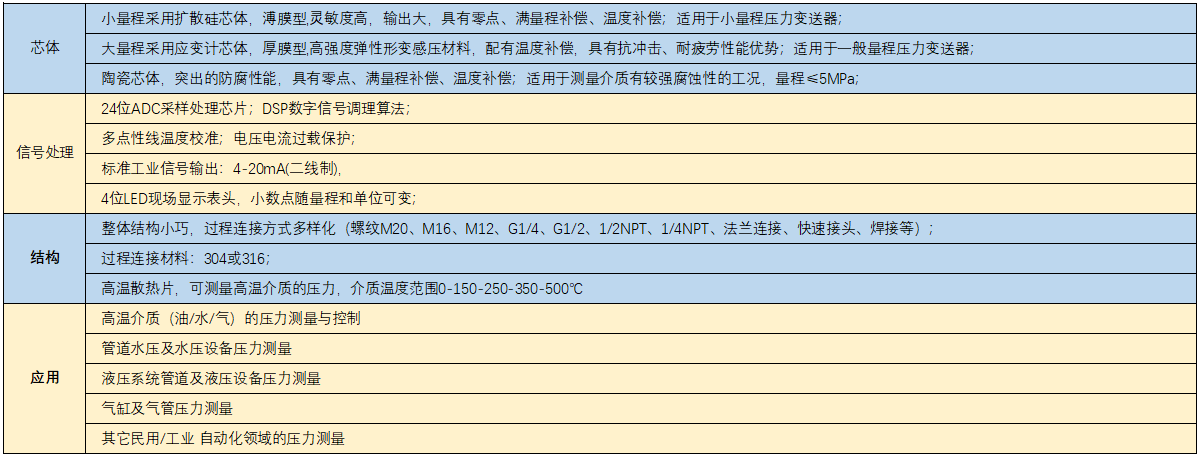

一、產品特點:
二、產品型號:

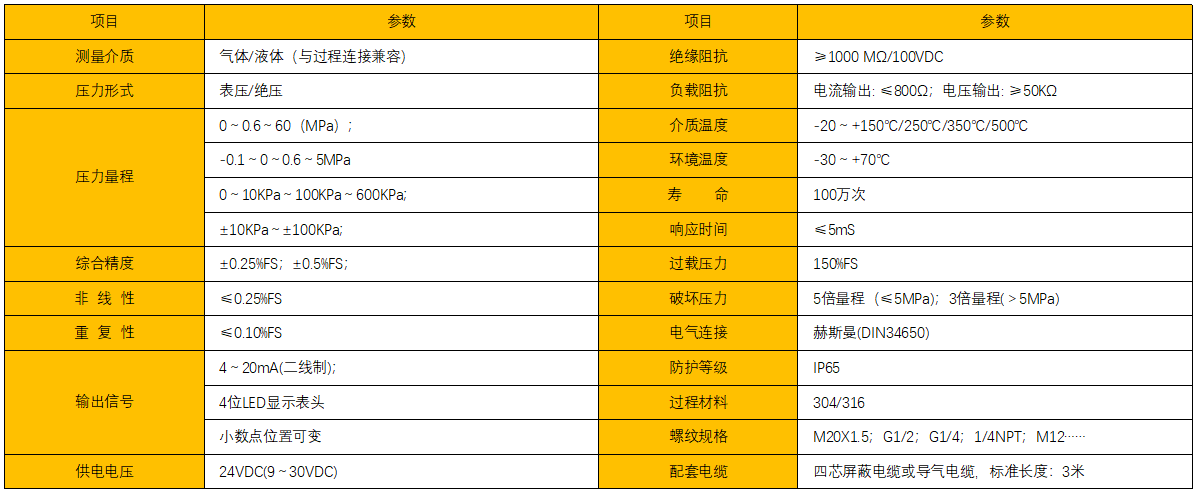

三、產品參數:

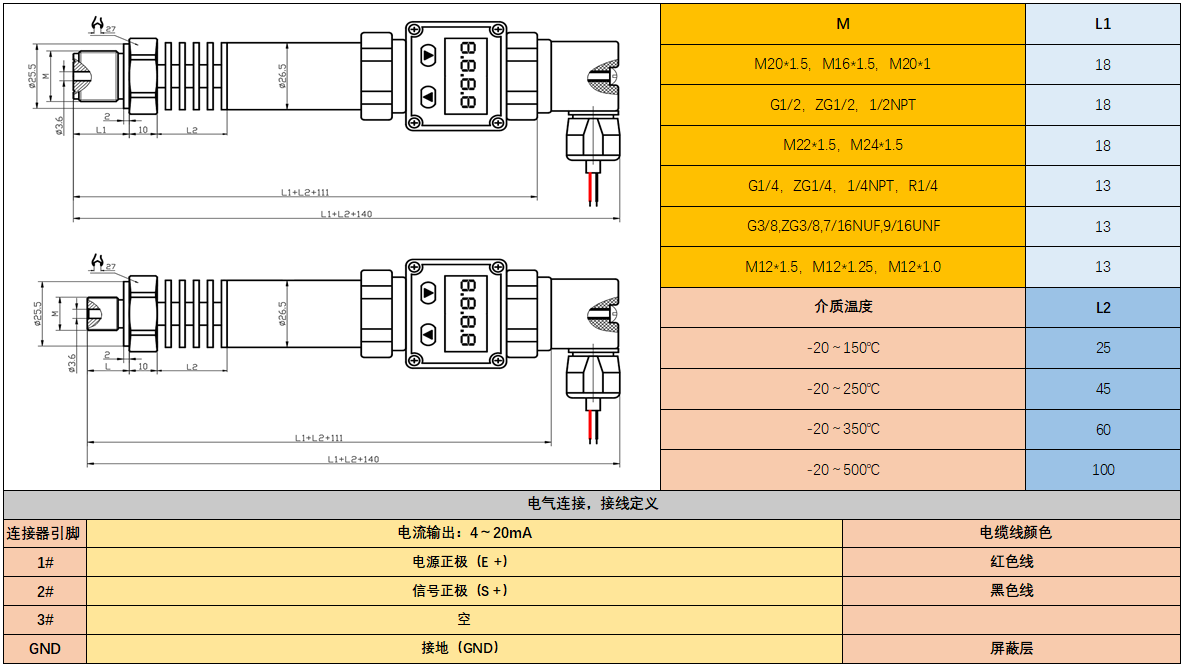

四、產品結構:

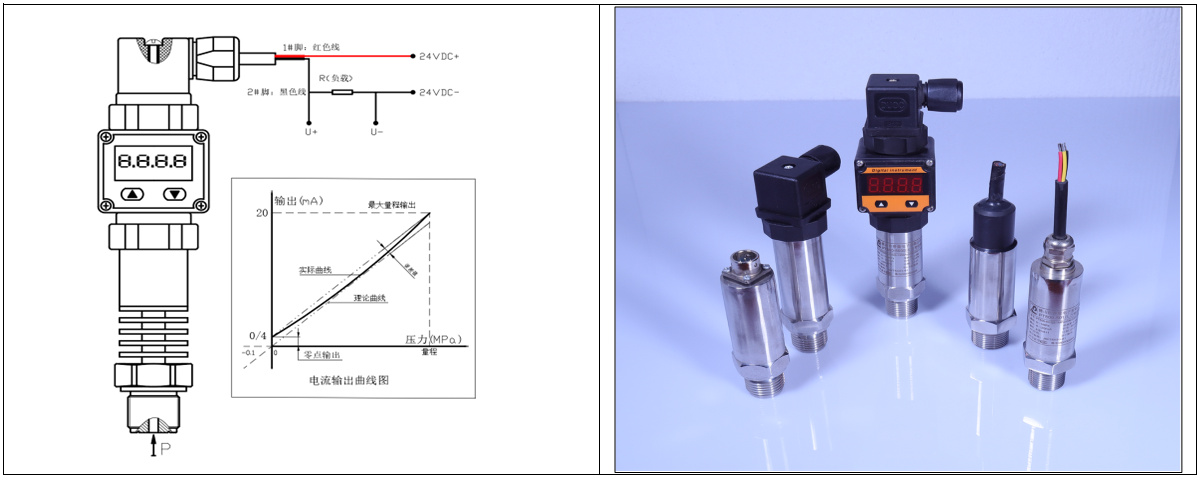

五、產品電氣連接與信號采集:

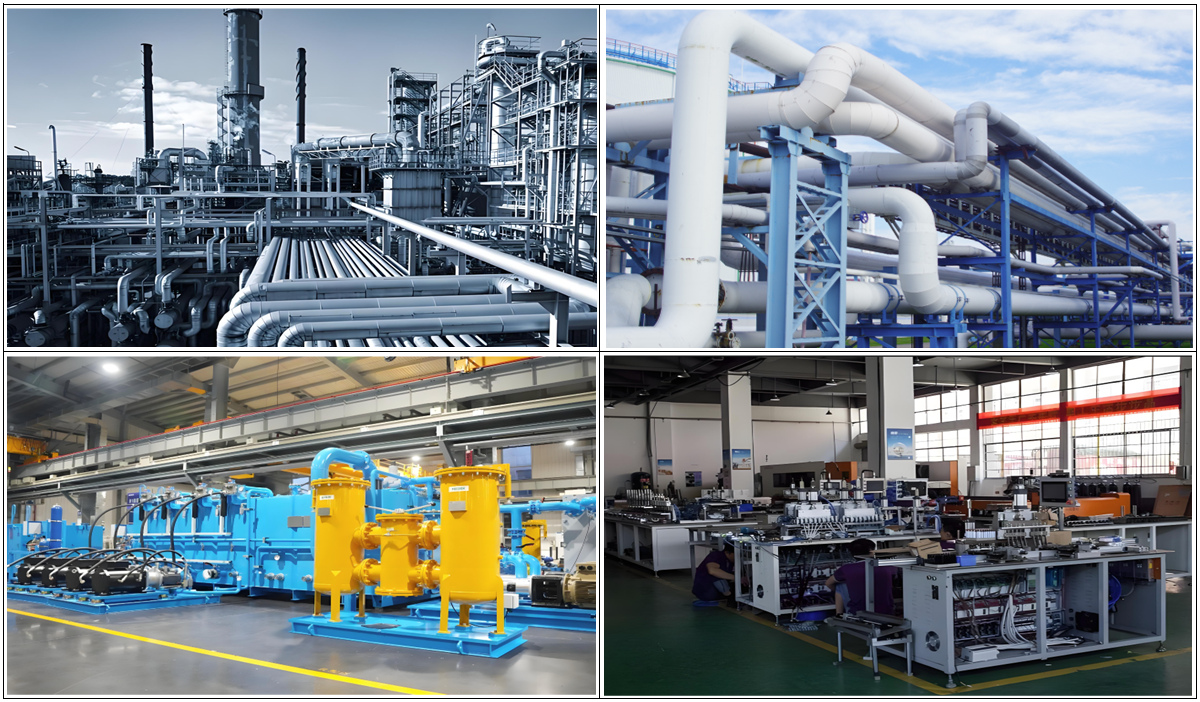

五、產品應用:
Foshan Puliang Electronics Co., Ltd. is engaged in data acquisition and monitoring of pressure, liquid level, temperature and humidity, inclination, displacement, force measurement, sedimentation, hydrostatic instrument, water immersion and other sensors, transmitters, smart IoT cloud platform, APP, host computer, instrumentation and other data collection and monitoring. Products cover automation, smart city (fire protection/gas supply/heating/water supply/environment), agriculture, meteorology,
