采用進口感壓芯片;選進的貼片工藝,具有零點、滿量程補償、溫度補償;24位ADC處理芯片;DSP數字調理算法;多點性線溫度校準;電壓電流過載保護;標準工業信號輸出:4-20mA(二線制),0-20mA(三線制),0-5VDC,0-10VDC,0.5-4.5VDC(三線制);結構小巧、全封焊結構、抗沖擊、耐疲勞、可靠性高、多種過程連接方式。
壓力變送器
壓力傳感器
水壓傳感器
油壓傳感器
風壓傳感器
氣壓傳感器

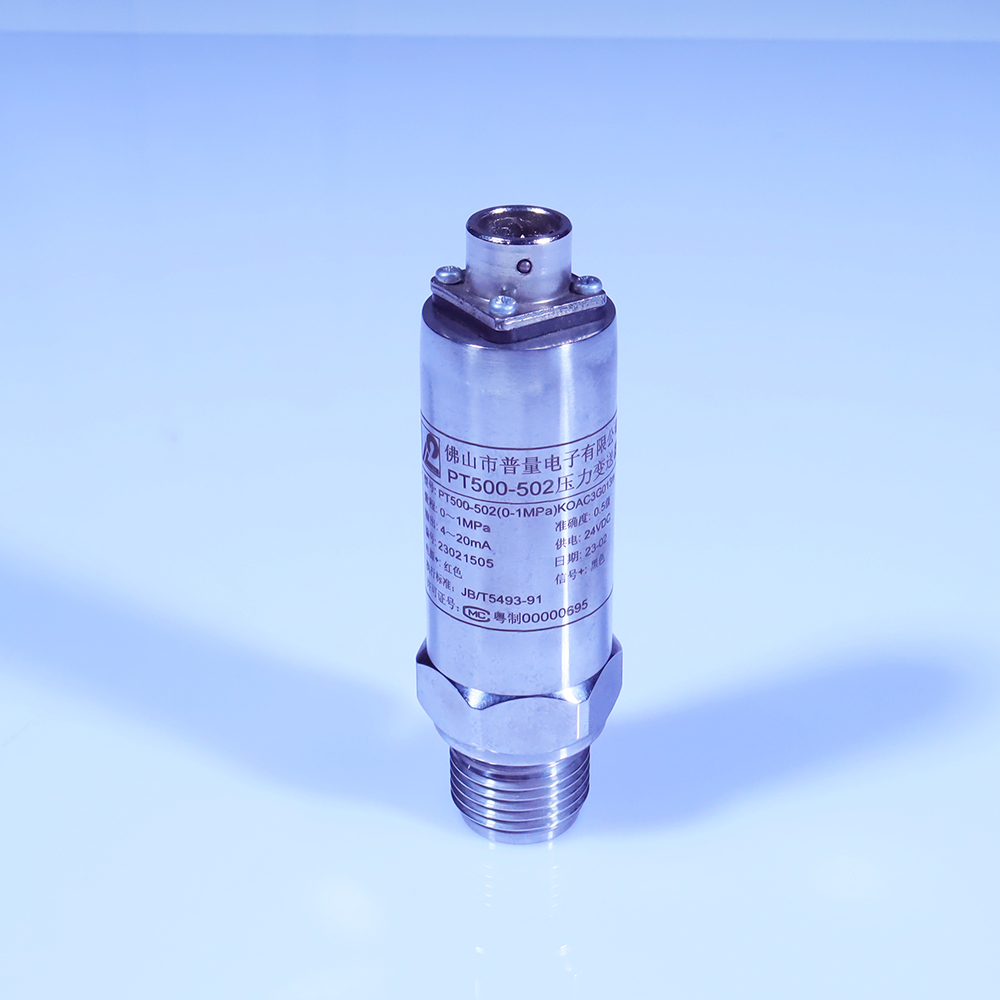

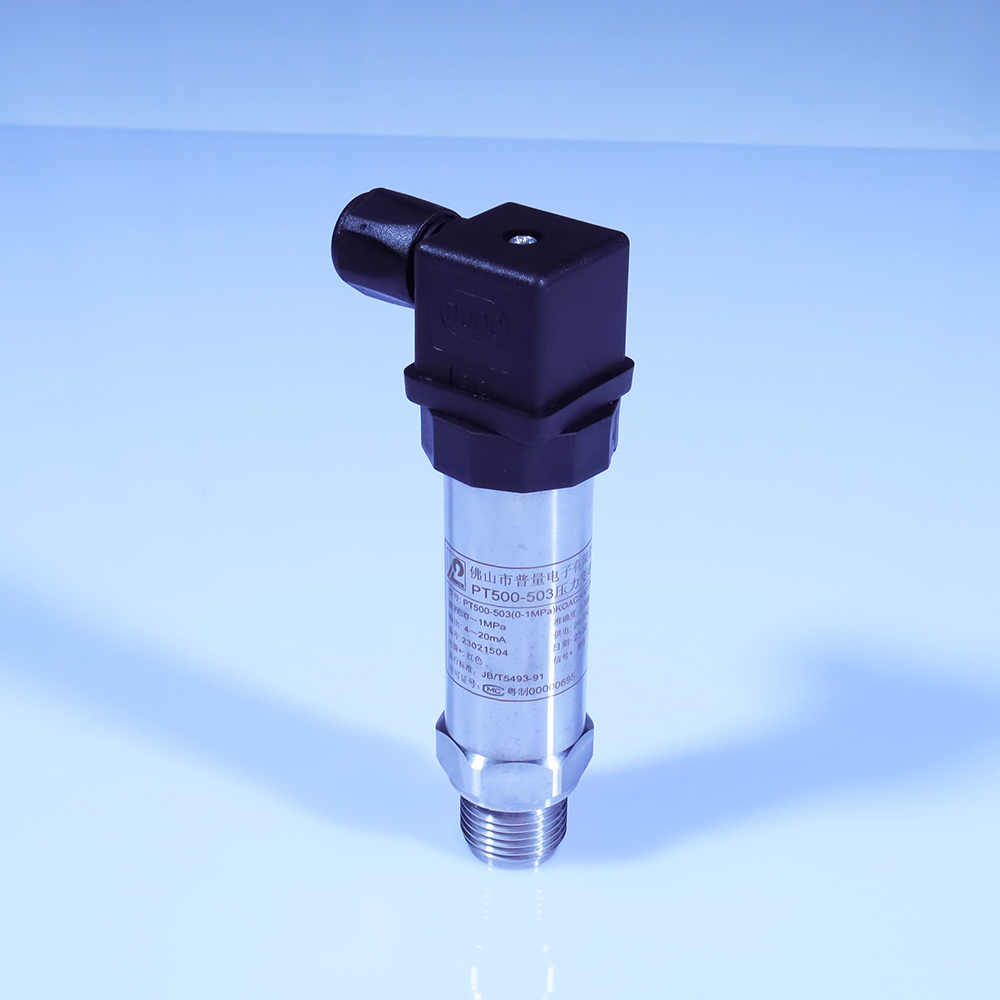

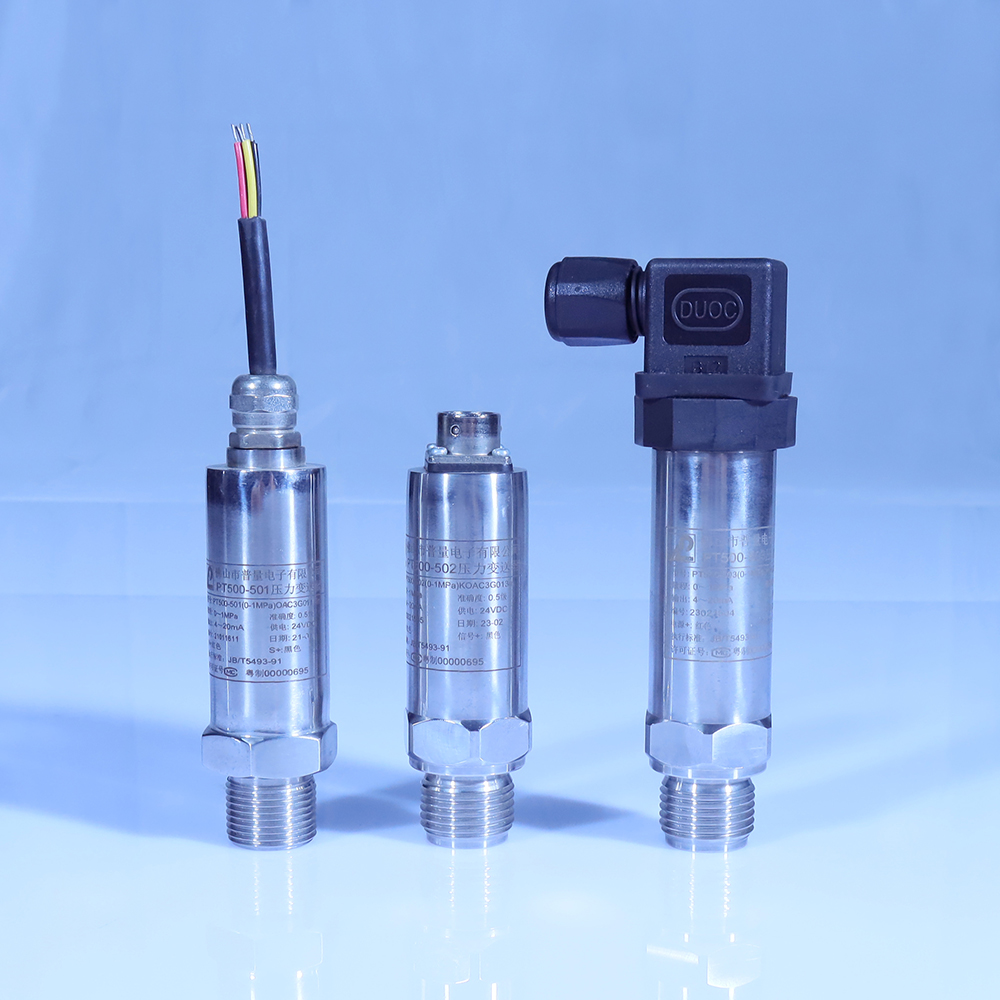

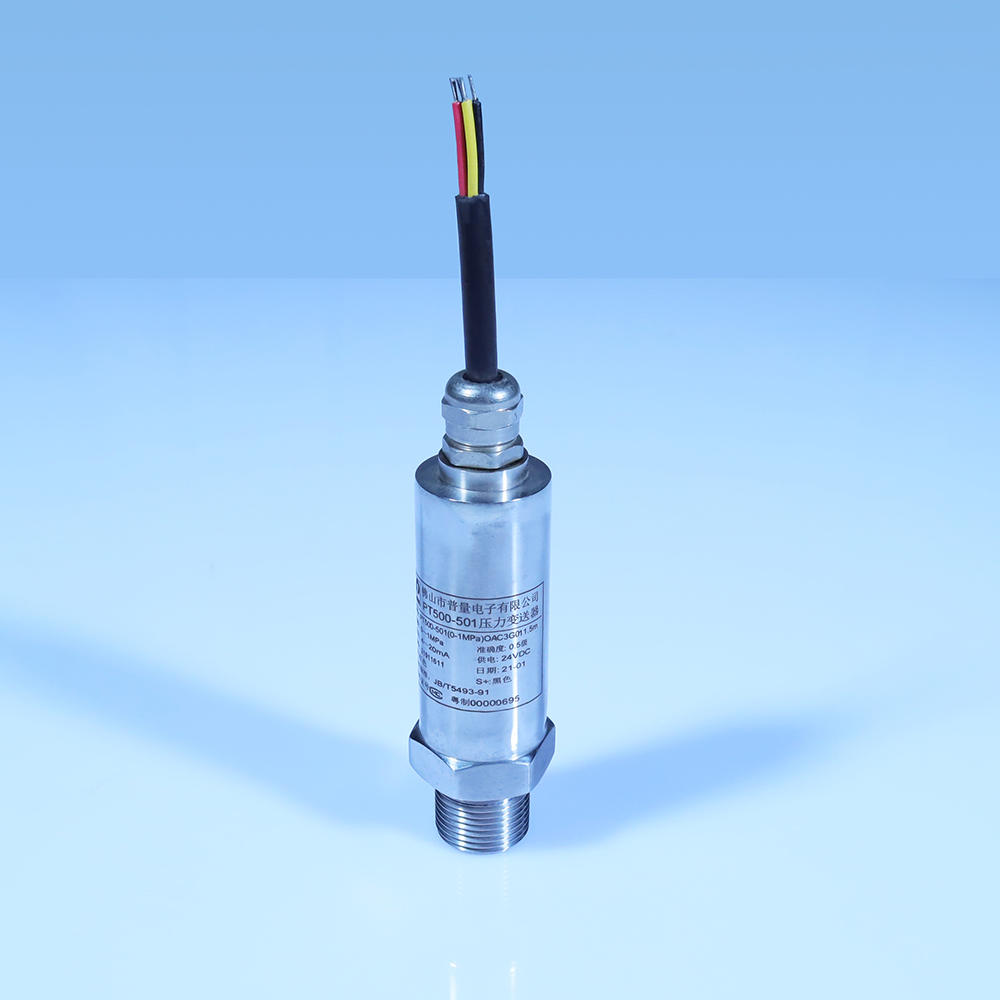

小巧型壓力變送器
一、產品特點:

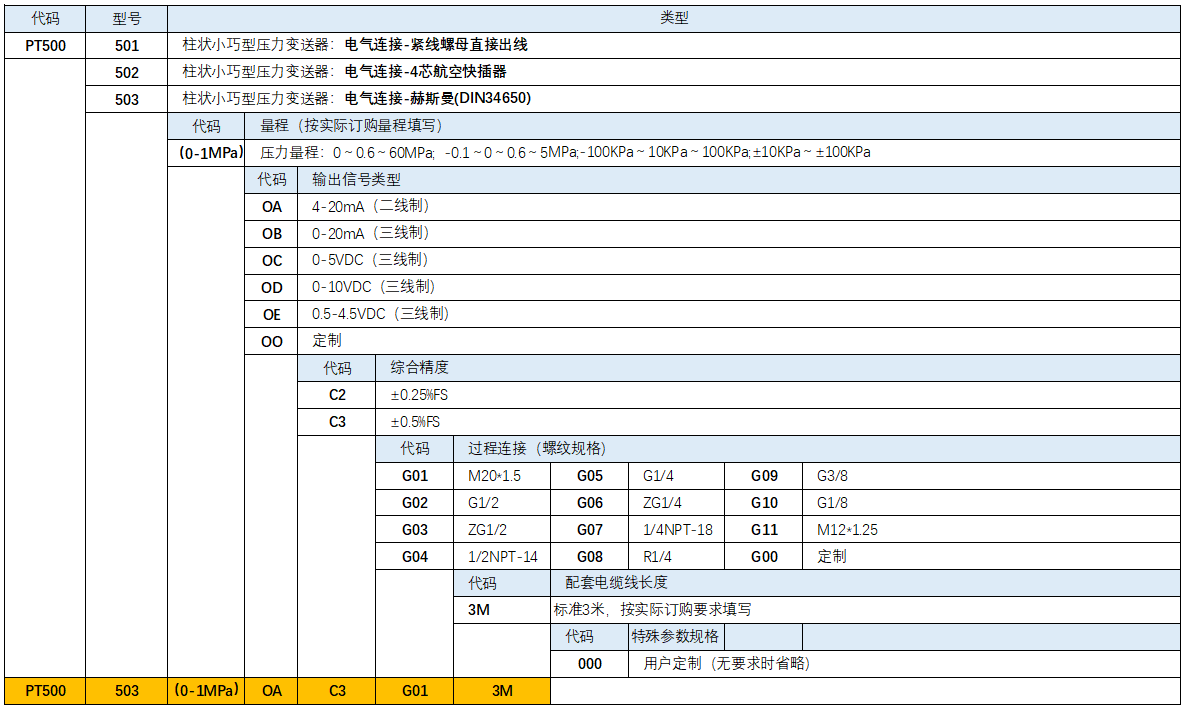

二、產品型號:

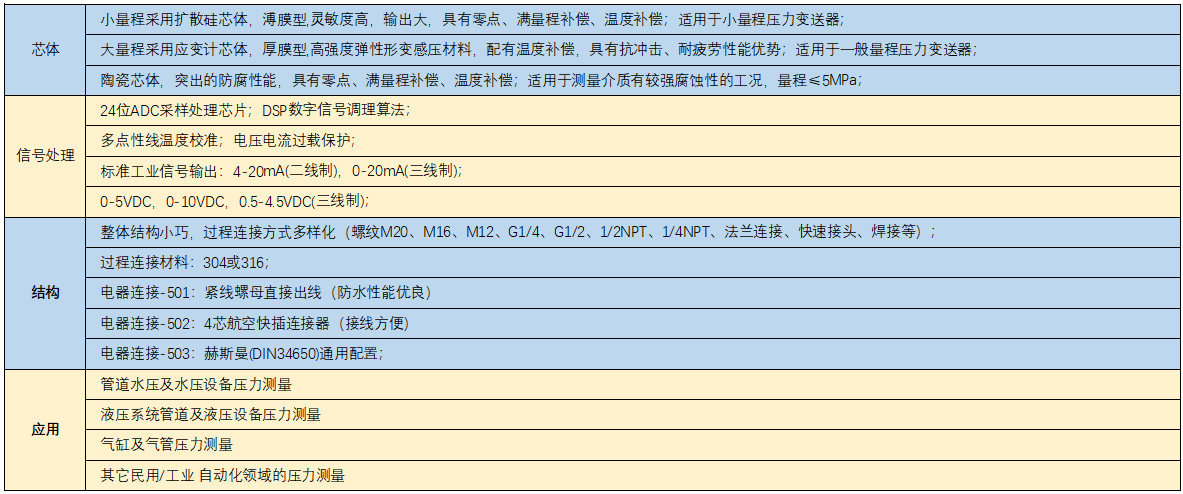

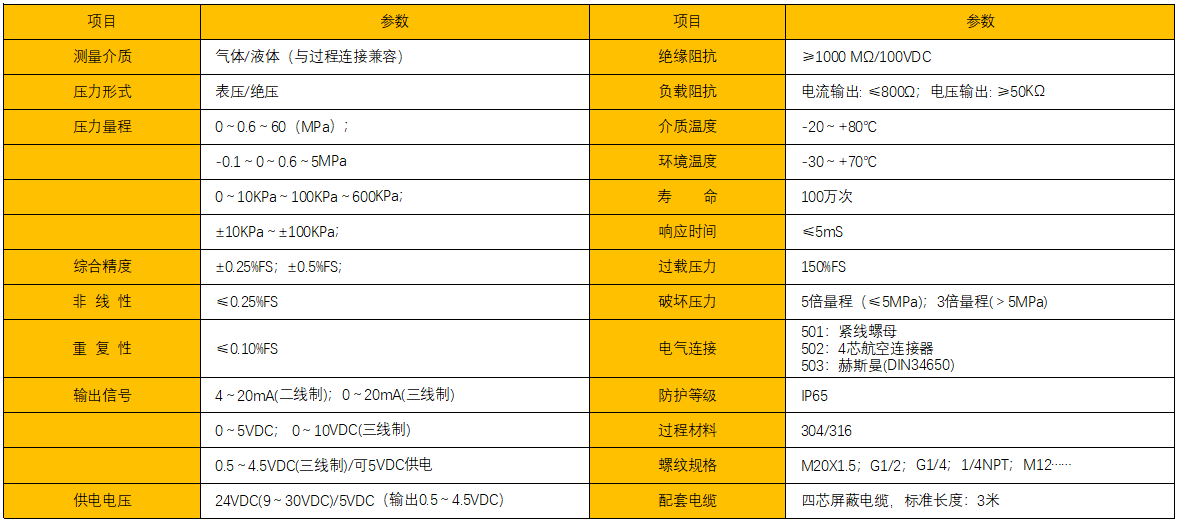

三、產品參數:

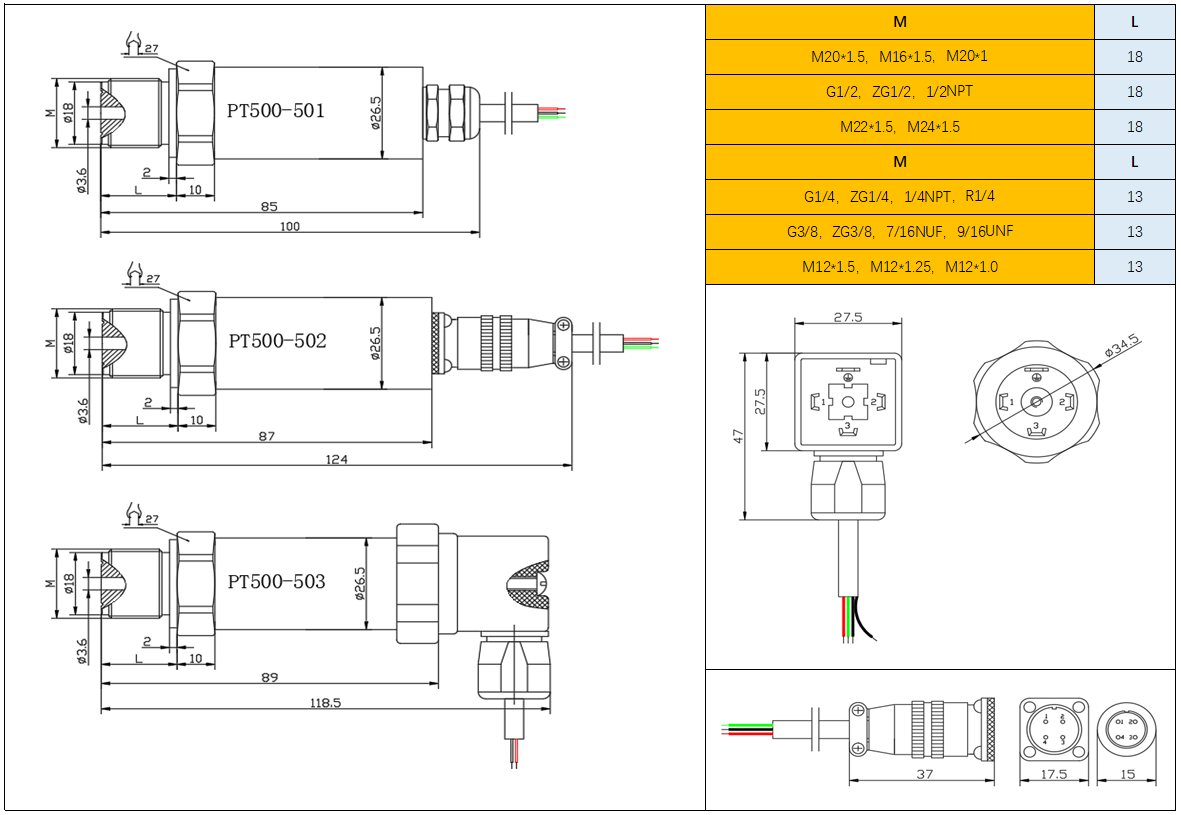

四、產品結構:

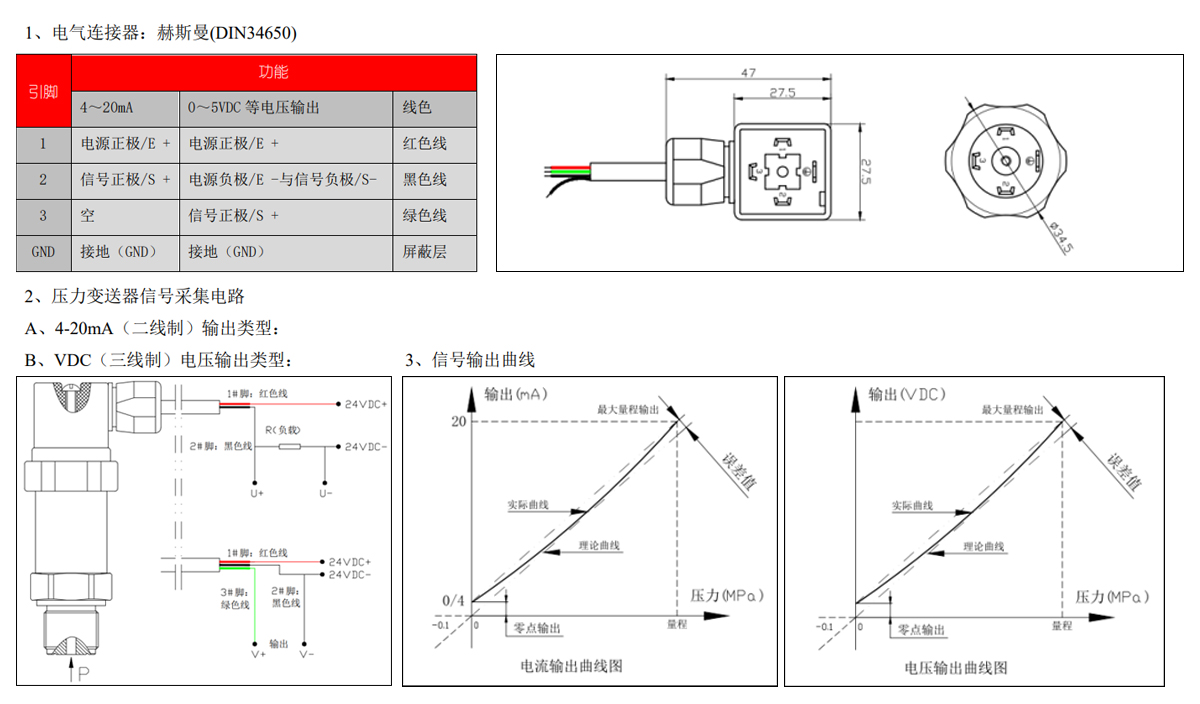

五、產品電氣連接與信號采集:
五、產品應用:
